Internal Bypass Pressure Regulator

We are Ningbo Brilliant Machinery. Our brass Pressure Regulating Valve is built to pair with high pressure plunger pump cleaning setups. This unloading valve tunes and maintains steady working pressure as your cleaning equipment operates. Lots of cleaning machine manufacturers pick this pressure control valve when putting together commercial cleaning pump assemblies.

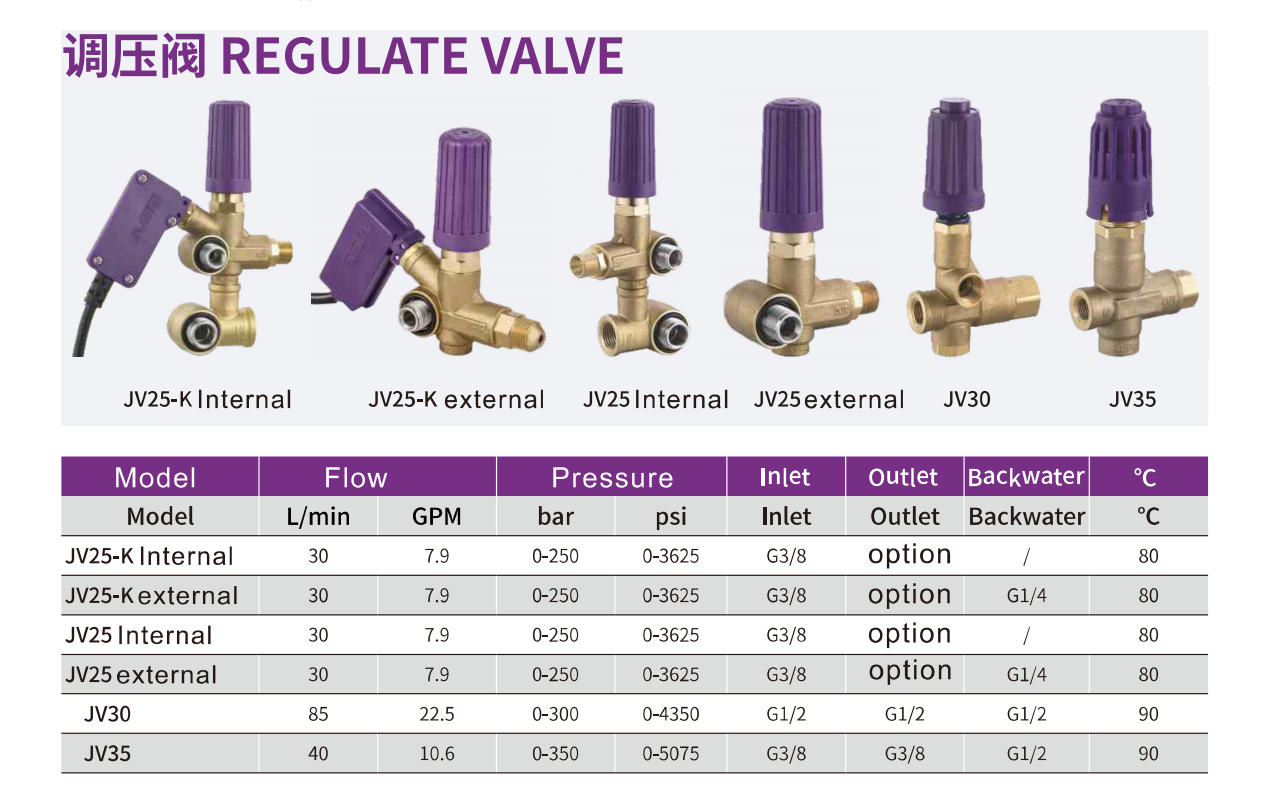

The JV25 Internal model can handle flow rates as high as 30L/min, with adjustable pressure spanning 0 to 250 bar. It handles extended continuous running cycles and keeps your pump safe from harm brought on by sudden pressure spikes. As a reliable pump safety valve, it automatically releases excess pressure once the system load shifts.

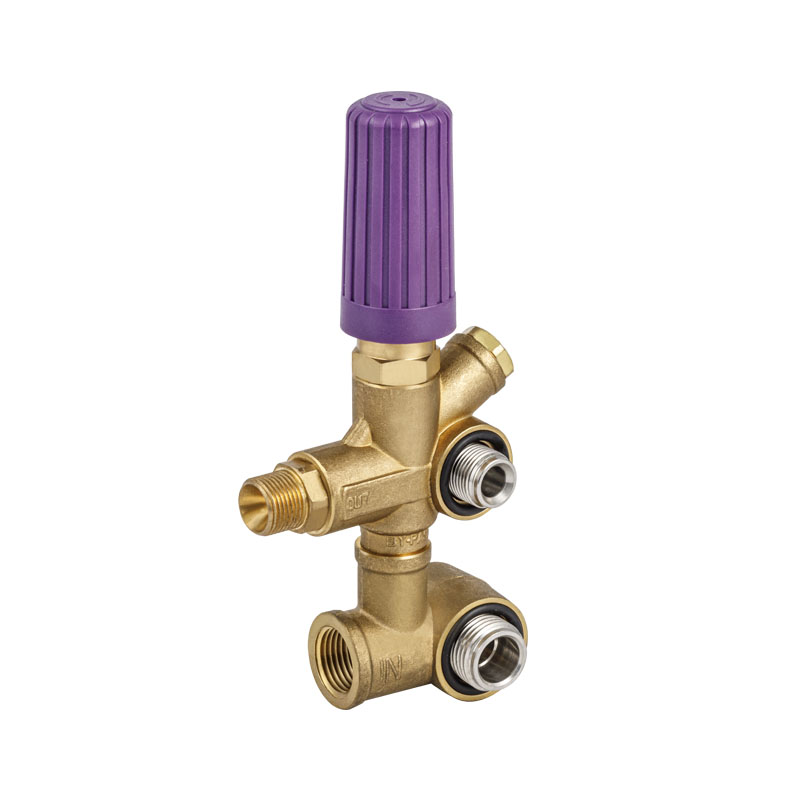

This valve uses a sturdy brass body to stand up to constant wear. It features an internal design without an extra backwater port, helping streamline the piping arrangement on your machine. All inner components are precision machined, so the valve keeps consistent performance even after hours of nonstop work. You can finish installation fast without hassle, and routine checks do not require any specialized tools. It can operate reliably at temperatures reaching 80℃, fitting both portable and fixed high pressure washers.

Core Features

• Solid brass valve body with reliable wear resistance
• Adjustable pressure range: 0-250 bar
• Maximum flow rate: 30 L/min
• G3/8 inlet port, no backwater port
• Compact internal structure, simple installation and maintenance

Application

High Pressure Washer systems, commercial vehicle washing, industrial surface cleaning, pump overpressure protection, cleaning machine assembly
