Stainless Steel Regulating Valve

Stainless bypass regulator for jet washer Pressure control valve for plunger pump Adjustable relief valve for cleaning machine

We are Ningbo Brilliant Machinery based in Ningbo, China. We manufacture valve spare parts for High Pressure Plunger Pumps, and these valves suit a wide range of plunger pump setups. Each item goes through careful inspection before packaging and delivery.

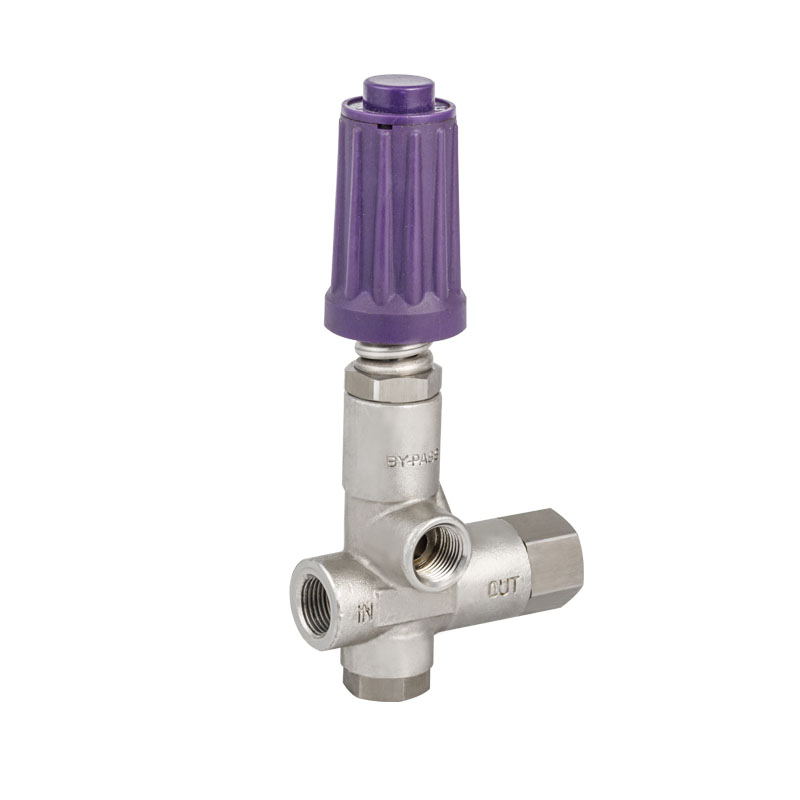

The JVF32 model is a robust unloader valve with maximum flow capacity of 80L/min. Its working pressure can be tuned between 0‑320bar. It stays reliable even when operating temperature hits 100℃. Inlet, outlet and backwater ports all come with G1/2 thread, which helps users complete site connection quickly. This pressure control valve for plunger pump fits different cleaning machines well. It can pair with pumps used for food and beverage cleaning, serving as an adjustable relief valve for cleaning machine to manage system pressure steadily.

It holds consistent pressure during continuous washing work. It lowers the chance of sudden pressure surges that may harm your pump assembly.

Internal stainless steel construction allows long time operation under 320bar, and it maintains minimal leakage during use.

Installation and replacement take little time. All three ports share the same G1/2 thread, so no additional adapters are needed for assembly.

We test each valve separately before shipment. Inspection documents are available if you need them. Our team is ready to offer support when you run into any installation issues.

Core Features

• Stainless steel internal structure to withstand high pressure
• Max flow: 80 L/min, adjustable pressure from 0 to 320 bar
• Working temperature can reach 100℃
• G1/2 thread for inlet, outlet and backwater port
• Easy assembly, no extra adapters needed

Application

industrial jet washers, food & beverage cleaning systems, high pressure plunger pump assemblies, heavy duty cleaning machine pressure regulation, pump overpressure protection
